Honda TRX300FW '92 TRX300FW Fourtrax 300 1992 Parts IN STOCK!
The inventory is reasonably accurate. If you order an item that is missing, I will refund your money through PayPal. If the item looks less than perfect I will send a photo for your approval. If you have questions email me at steve@hondarestoration.com
I will charge actual shipping rates with a minimum shipping and handling fee of $4.95 and will refund any overpayment or ask for additional payment if you are overseas etc.
Have fun!
Look up your Honda part numbers here!
Parts Diagrams from CMS
Click Herefrom CMS in Holland for Honda TRX300
Parts in stock for Honda TRX300FW '92 TRX300FW Fourtrax 300 1992
| Qty | Honda Part Number | Description | Price | Loc. | ID | PayPal |
| 2 | 06450-HC5-405 AV_32 | SHOE KIT, BRAKE
 Also at CMS € 34.5 |
$32.60 | AV_32 | 30034 |  |
| 1 | 06450-HC5-900 502 | SHOE KIT, BRAKE
 Also at CMS € 61.5 |
$58.12 | 502 | 74 | |
| 1 | 11356-HC5-741 AV_42 | GASKET | $4.99 | AV_42 | 30064 | |
| 2 | 12194-HC5-740 AV_42 | GSKT, TENSIONER HOLE | $2.22 | AV_42 | 30131 | |
| 3 | 12392-HC4-005 KS | GASKET, TAPPET COVER | $3.86 | KS | 50235 | |
| 5 | 15413-mc8-000 MD-B4 | RUBBER, FILTER | $2.90 | MD-B4 | 20352 | |
| 10 | 15414-KF0-000 AV_10 | SPRING | $4.14 | AV_10 | 30645 | |
| 3 | 15414-KF0-000 33 | SPRING | $5.36 | 33 | 1606 | |
| 1 | 15772-292-010 54 | CLIP, BREATHER TUBE | $3.76 | 54 | 1698 | |
| 1 | 16010-HM7-700 K5 | GASKET SET
 Also at CMS € 19 |
$17.96 | K5 | 51103 | |
| 2 | 16155-397-971 K6 | VALVE, FLOAT
 Also at CMS € 27 |
$25.52 | K6 | 51262 | |
| 4 | 17245-107-010 290 | RUBBER | $2.66 | 290 | 2050 | |
| 5 | 17316-HA0-000 cp-6 | CLIP, BREATHER TUBE | $3.95 | cp-6 | 40560 | |
| 5 | 22201-ML4-610 79 | DISK, CL FRICTION
 Also at CMS € 16.5 |
$15.59 | 79 | 2610 | |
| 2 | 24781-371-000 399 | RUB, GEARSHIFT PEDAL | $4.99 | 399 | 3276 | |
| 2 | 31204-KS5-901 AV_35 | SPRING, CARBON BRUSH | $2.64 | AV_35 | 32149 | |
| 1 | 31655-HC4-000 AV_22 | *31655-HM5-850 | $12.72 | AV_22 | 32163 | |
| 1 | 33107-246-003 738 | SPRING | $1.98 | 738 | 3903 | |
| 2 | 33107-246-003 MD-B7 | SPRING | $3.58 | MD-B7 | 40394 | |
| 1 | 35856-425-000 399 | RUB, MAGNETIC SHOCK
 Also at CMS € 10 |
$11.34 | 399 | 4410 | |
| 1 | 41405-HA7-670 300 | RING, STOPPER | $2.90 | 300 | 15309 | |
| 1 | 41438-MB0-310 AV_18 | SHIM B (0.15) | $5.02 | AV_18 | 32444 | |
| 4 | 42532-HA7-671 AV_20 | DISK A
 Also at CMS € 21 |
$19.85 | AV_20 | 32500 | |
| 1 | 42544-HA7-671 726 | SEAT D (1.60) | $11.36 | 726 | 16125 | |
| 1 | 42624-HC4-000 T60 | RING, DAMPER | $18.73 | T60 | 16216 | |
| 1 | 42624-HC4-000 T61 | RING, DAMPER | $18.73 | T61 | 16247 | |
| 2 | 43341-602-003 cp-5 | CUP, PISTON | $3.71 | cp-5 | 40526 | |
| 7 | 43352-568-003 424 | SCREW, BLEEDER | $6.32 | 424 | 4940 | |
| 1 | 45171-HM5-A81 396 | SPRING, BRAKE | $2.35 | 396 | 5204 | |
| 1 | 45518-MB4-671 AV_31 | PLATE, DIAPHRAGM
 Also at CMS € 11 |
$10.40 | AV_31 | 32703 | |
| 3 | 50142-437-970 81 | GROMMET, SIDE COVER | $2.38 | 81 | 40017 | |
| 2 | 50354-428-000 113 | RUBBER B, STOPPER | $2.51 | 113 | 40011 | |
| 2 | 50354-428-000 416 | RUBBER B, STOPPER | $2.51 | 416 | 5392 | |
| 1 | 52112-ma1-300 AV_31 | HOLDER | $6.88 | AV_31 | 32933 | |
| 1 | 53144-HA0-010 AV_37 | ARM, THROTTLE | $7.55 | AV_37 | 33005 | |
| 1 | 53167-958-680 AV_31 | GUARD, HANDLE END | $5.70 | AV_31 | 33017 | |
| 2 | 53173-376-000 AV_40 | HLDR, LEVER BRACKET
 Also at CMS € 13 |
$12.29 | AV_40 | 33033 | |

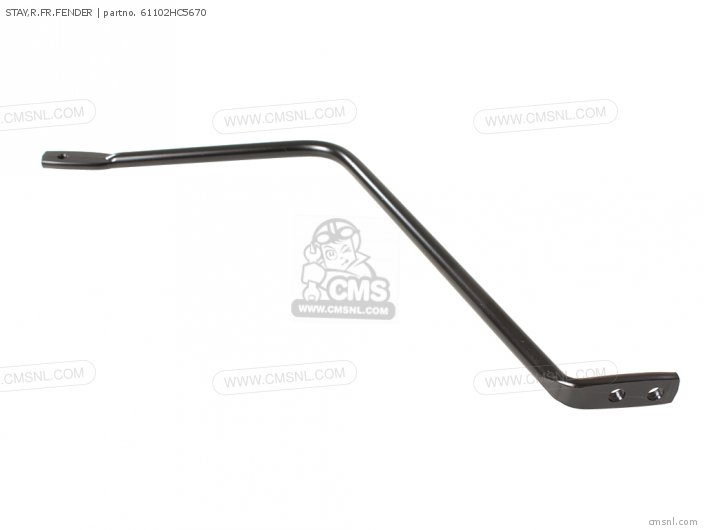

| 1 | 61102-HC5-670 59 | STAY, R. FR.
 Also at CMS € 27.5 |
$25.99 | 59 | 40076 | |
| 1 | 61103-357-000 637 | RUBBER, FR. | $2.51 | 637 | 6118 | |
| 1 | 61304-HB3-003 721 | NUT, SPECIAL (6MM) | $2.56 | 721 | 6162 | |
| 2 | 61304-HB3-003 AV_18 | NUT, SPECIAL (6MM) | $2.56 | AV_18 | 33117 | |
| 2 | 77201-074-000 MD_129 | RUBBER, SEAT CUSHION | $3.62 | MD_129 | 23473 | |
| 2 | 77204-312-000 MD_129 | RUBBER, SEAT SETTING | $12.95 | MD_129 | 23487 | |
| 18 | 80101-283-000 629 | RUBBER, RR. | $3.94 | 629 | 6253 | |
| 1 | 80127-HM5-850 AV_34 | HOLDER, SPLASH GUARD
 Also at CMS € 12.5 |
$11.81 | AV_34 | 33186 | |
| 4 | 80128-ha7-830 MD_147 | HOLDER, SPLASH GUARD (UPPER) | $4.51 | MD_147 | 23575 | |
| 1 | 83645-GG0-000 13 | BAND, NYLON | $1.70 | 13 | 40087 | |
| 9 | 84906-118-000 AV_18 | COLLAR | $2.69 | AV_18 | 33223 | |
| 4 | 90012-426-000 420 | SCREW, TAPPET ADJ. | $5.38 | 420 | 6490 | |
| 3 | 90109-371-000 399 | BOLT, SEALING (8MM) | $2.53 | 399 | 6606 | |
| 1 | 90114-HA0-770 JJ10 | BOLT | $2.00 | JJ10 | 10832 | |
| 1 | 90114-HA0-770 MD-B7 | BOLT | $3.58 | MD-B7 | 40166 | |
| 1 | 90114-HA0-770 MD-B7 | BOLT | $3.58 | MD-B7 | 40248 | |
| 1 | 90115-HA6-000 AV_35 | SCREW | $4.00 | AV_35 | 33346 | |
| 1 | 90137-HA7-770 MD-B7 | BOLT, STUD (10X25) | $7.66 | MD-B7 | 40260 | |
| 1 | 90137-HA7-770 MD-B7 | BOLT, STUD (10X25) | $7.66 | MD-B7 | 40192 | |
| 1 | 90137-HA7-770 MD-B7 | BOLT, STUD (10X25) | $7.66 | MD-B7 | 40341 | |
| 1 | 90137-HA7-770 MD-B7 | BOLT, STUD (10X25) | $7.66 | MD-B7 | 40353 | |
| 11 | 90206-250-000 AV_34 | NUT, TAPPET ADJ | $4.78 | AV_34 | 33420 | |
| 40 | 90206-250-000 459 | NUT, TAPPET ADJ. | $2.40 | 459 | 6738 | |
| 2 | 90242-MB0-000 MD_204 | NUT, LOCK (64MM)
 Also at CMS € 26.5 |
$25.04 | MD_204 | 24128 | |
| 1 | 90304-HM5-A80 397 | NUT, CASTLE (18MM) | $7.04 | 397 | 6759 | |
| 8 | 90321-315-670 AV_32 | NUT, FIXING
 Also at CMS € 12.5 |
$11.81 | AV_32 | 33455 | |
| 4 | 90417-360-000 AV_77 | WASHER, DRUM STOPPER | $1.52 | AV_77 | 33481 | |
| 1 | 90432-426-000 461 | WASHER (20MM) | $6.78 | 461 | 6831 | |
| 1 | 90441-706-000 cp-3 | WASHER (6MM) | $1.20 | cp-3 | 40352 | |
| 8 | 90441-MC0-000 AV_77 | WASHER (7MM) | $1.98 | AV_77 | 33512 | |
| 1 | 90464-KE8-000 270 | WASHER (22MM) | $3.82 | 270 | 15514 | |
| 2 | 90471-580-000 300 | GASKET (8MM) | $1.82 | 300 | 15346 | |
| 1 | 90471-580-000 573 | GASKET (8MM) | $1.82 | 573 | 16169 | |
| 3 | 90471-580-000 393 | GASKET (8MM) | $1.96 | 393 | 6894 | |
| 3 | 90512-303-000 JJ10 | WASHER (17.5MM) | $1.55 | JJ10 | 10899 | |
| 6 | 90524-030-000 JJ10 | WASHER A | $1.25 | JJ10 | 10902 | |
| 22 | 90524-030-000 637 | WASHER A | $1.30 | 637 | 6934 | |
| 6 | 90601-329-000 414 | CIRCLIP (22MM) | $2.40 | 414 | 6979 | |
| 17 | 90601-329-000 473 | CIRCLIP (22MM) | $2.40 | 473 | 6980 | |
| 1 | 90601-329-000 AV_33 | CIRCLIP (22MM) | $2.40 | AV_33 | 33639 | |
| 1 | 91009-HA0-004 AV_16 | BEARING (6303SP)
 Also at CMS € 27.5 |
$25.99 | AV_16 | 33713 | |
| 1 | 91102-HA0-000 AV_16 | PIN, DOWEL (5X38) | $4.37 | AV_16 | 33737 | |
| 2 | 91201-965-000 AV_76 | OIL SEAL (12X22X5) | $3.95 | AV_76 | 33753 | |
| 1 | 91202-HC4-005 AV_76 | OIL SEAL (12X22X5) | $4.85 | AV_76 | 33763 | |
| 3 | 91205-950-003 467 | OIL SEAL (25X42X7) | $9.28 | 467 | 7252 | |
| 1 | 91208-611-005 328 | OIL SEAL (14X20X4) | $3.97 | 328 | 7281 | |
| 2 | 91208-611-005 491 | OIL SEAL (14X20X4) | $3.97 | 491 | 7282 | |
| 1 | 91208-611-005 cp-3 | DUST SEAL (14X20X4) | $3.58 | cp-3 | 40251 | |
| 1 | 91251-HC5-005 501 | OIL SEAL (38X64X11)
 Also at CMS € 13 |
$12.29 | 501 | 7308 | |
| 1 | 91258-HB3-003 AV_76 | DUST SEAL (37X25X6) | $7.09 | AV_76 | 33880 | |
| 1 | 91268-463-003 324 | DUST SEAL (26X40X5) | $9.47 | 324 | 15263 | |
| 1 | 91303-377-000 AV_12 | O-RING (13.8X2.5) | $3.34 | AV_12 | 33927 | |
| 1 | 91303-428-003 312 | O-RING (7.7X2.5) | $1.66 | 312 | 15355 | |
| 1 | 91307-KF0-003 150 | O-RING (18X3) | $2.53 | 150 | 7495 | |
| 3 | 91312-MG7-003 AV_75 | O-RING (24.4X3.1) | $5.93 | AV_75 | 33973 | |
| 1 | 91354-HC4-901 AV_76 | O-RING (31.6X2.2) | $2.22 | AV_76 | 33987 | |
| 2 | 91410-KT7-000 cp-3 | CLIP (4X60) | $4.45 | cp-3 | 40142 | |
| 2 | 93500-04016-0G JJ10 | SCREW, PAN (4X16) | $0.56 | JJ10 | 11013 | |
| 1 | 93500-05018-0G cp-3 | SCREW, PAN (5X18) | $9.58 | cp-3 | 40136 | |
| 20 | 93600-04012-0G HO1 | SCREW, FLAT (4X12) | $0.56 | HO1 | 11028 | |
| 5 | 93893-04020-07 cp-3 | SCREW-WASHER (4X20) | $0.78 | cp-3 | 40346 | |
| 4 | 93894-04018-08 cp-3 | SCREW-WASHER (4X18) | $0.72 | cp-3 | 40134 | |
| 8 | 94002-06000-0S AV_76 | NUT, HEX. (6MM) | $4.78 | AV_76 | 34026 | |
| 1 | 94002-10000-0S 26 | NUT, HEX. (10MM) | $3.58 | 26 | 40235 | |
| 7 | 94050-10000 267 | NUT, FLANGE (10MM) | $3.58 | 267 | 15542 | |
| 6 | 94050-10000 325 | NUT, FLANGE (10MM) | $3.58 | 325 | 15172 | |
| 7 | 94103-04800 AV_76 | WASHER, PLAIN (4MM) | $0.56 | AV_76 | 34045 | |
| 7 | 94111-08800 AV_77 | WASHER, SPRING (8MM) | $0.56 | AV_77 | 34054 | |
| 6 | 94301-08140 471 | PIN, DOWEL (8X14) | $1.34 | 471 | 7583 | |
| 1 | 94301-10160 422 | PIN, DOWEL (10X16) | $1.57 | 422 | 7588 | |
| 2 | 94305-40222 62 | PIN, SPRING (4X22) | $2.38 | 62 | 40264 | |
| 10 | 94510-12000 139 | CIRCLIP (12MM) | $3.58 | 139 | 15175 | |
| 12 | 94510-12000 472 | CIRCLIP (12MM) | $3.58 | 472 | 7608 | |
| 1 | 94510-12000 AV_12 | CIRCLIP (12MM) | $3.58 | AV_12 | 34076 | |
| 4 | 94510-15000 AV_12 | CIRCLIP (15MM) | $0.74 | AV_12 | 34078 | |
| 12 | 94601-15000 461 | CLIP (15MM) | $0.94 | 461 | 7624 | |
| 4 | 94601-15000 473 | CLIP (15MM) | $0.94 | 473 | 7625 | |
| 2 | 94601-15000 27 | CLIP (15MM) | $0.94 | 27 | 7626 | |
| 18 | 94601-17000 AV_12 | CLIP (17MM) | $0.98 | AV_12 | 34094 | |
| 1 | 95002-35000 321 | CLIP, TUBE (C6.5) | $2.38 | 321 | 15361 | |
| 4 | 95002-35000 49 | CLIP, TUBE (C6.5) | $2.38 | 49 | 40223 | |
| 9 | 95011-63000 AV_12 | RUBBER C | $3.84 | AV_12 | 34107 | |
| 1 | 95011-63000 475 | RUBBER C | $4.01 | 475 | 7659 | |
| 1 | 95701-06010-08 AV_12 | BOLT, FLANGE (6X10) | $0.92 | AV_12 | 34144 | |
| 1 | 95701-06016-07 AV_12 | BOLT, FLANGE (6X16) | $2.27 | AV_12 | 34146 | |
| 1 | 95701-06020-08 37 | BOLT, FLANGE (6X20) | $2.38 | 37 | 40164 | |
| 3 | 95701-06025-08 AV_12 | BOLT, FLANGE (6X25) | $0.98 | AV_12 | 34150 | |
| 1 | 95701-06028-00 HO1 | BOLT, FLANGE (6X28) | $1.02 | HO1 | 11067 | |
| 4 | 95701-06040-00 JJ10 | BOLT, FLANGE (6X40) | $3.42 | JJ10 | 11068 | |
| 4 | 95701-06040-00 26 | BOLT, FLANGE (6X40) | $3.58 | 26 | 40307 | |
| 6 | 95701-08014-08 AV_12 | BOLT, FLANGE (8X14) | $0.98 | AV_12 | 34152 | |
| 10 | 96001-06012-00 47 | BOLT, FLANGE (6X12) | $2.38 | 47 | 40165 | |
| 4 | 96001-06028-00 HO1 | BOLT, FLANGE (6X28) | $1.26 | HO1 | 11072 | |
| 7 | 96001-06035-00 HO1 | BOLT, FLANGE (6X35) | $3.58 | HO1 | 11073 | |
| 7 | 96001-06040-00 HO1 | BOLT, FLANGE (6X40) | $1.22 | HO1 | 11074 | |
| 1 | 96100-62040-00 AV_16 | BEARING (6204) | $24.89 | AV_16 | 34175 | |
| 26 | 96211-08000 492 | BALL (#8) (1/4) | $0.96 | 492 | 7725 | |
| End of parts for the Honda TRX300FW '92 TRX300FW Fourtrax 300 1992. | ||||||
