Honda ATC250R '85 ATC250R 1985 Parts IN STOCK!
The inventory is reasonably accurate. If you order an item that is missing, I will refund your money through PayPal. If the item looks less than perfect I will send a photo for your approval. If you have questions email me at steve@hondarestoration.com
I will charge actual shipping rates with a minimum shipping and handling fee of $4.95 and will refund any overpayment or ask for additional payment if you are overseas etc.
Have fun!
Look up your Honda part numbers here!
Parts Diagrams from CMS
Click Herefrom CMS in Holland for Honda ATC250
Parts in stock for Honda ATC250R '85 ATC250R 1985
| Qty | Honda Part Number | Description | Price | Loc. | ID | PayPal |

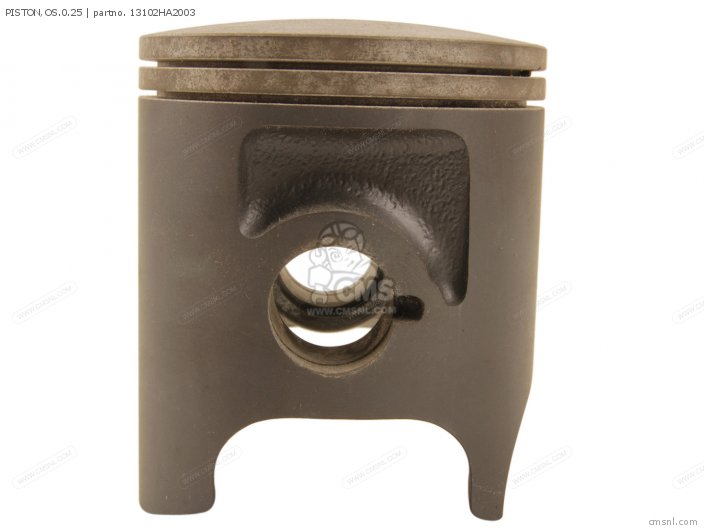

| 1 | 13102-HA2-003 KS | PISTON (OS) (0.25)
 Also at CMS € 111 |
$104.90 | KS | 50301 |  |
| 1 | 13111-KZ3-000 KSB-1 | PIN, PISTON
 Also at CMS € 20.5 |
$19.37 | KSB-1 | 50071 | |
| 1 | 14132-KAE-000 AV_13 | GASKET A, REED VALVE | $3.55 | AV_13 | 30284 | |
| 3 | 17256-425-010 AV_16 | BAND, A/CLNR TUBE | $8.51 | AV_16 | 30897 | |
| 1 | 18352-ha2-010 AV_50 | GASKET, EX. PIPE | $6.67 | AV_50 | 30988 | |
| 5 | 19506-KA4-000 686 | CLAMP, WATER HOSE | $8.64 | 686 | 2538 | |
| 2 | 33128-471-003 LEJ3 | NUT, UNIT HOLDER | $1.44 | LEJ3 | 9958 | |
| 1 | 33128-471-003 110 | NUT, UNIT HOLDER | $1.44 | 110 | 15822 | |
| 1 | 33128-471-003 cp-5 | NUT, UNIT HOLDER | $1.44 | cp-5 | 40473 | |
| 1 | 33128-471-003 cp-5 | NUT, UNIT HOLDER | $1.44 | cp-5 | 40482 | |
| 7 | 43352-568-003 424 | SCREW, BLEEDER | $6.32 | 424 | 4940 | |
| 4 | 45105-ka3-731 AV_112 | PAD
 Also at CMS € 33.5 |
$31.66 | AV_112 | 32630 | |
| 1 | 45131-166-016 AV_20 | BOLT, PIN | $7.46 | AV_20 | 32653 | |
| 1 | 45133-MA3-006 78 | BOOT B | $5.33 | 78 | 5192 | |
| 1 | 45215-GE2-016 2 | PIN, HANGER | $10.21 | 2 | 5209 | |
| 2 | 46184-611-000 AV_20 | DUST SEAL | $8.14 | AV_20 | 32711 | |
| 1 | 50324-425-010 423 | COLLAR (6.3X13) | $4.93 | 423 | 5372 | |
| 2 | 50352-434-000 MD_161 | RUBBER A, STOPPER | $8.38 | MD_161 | 22816 | |
| 1 | 51447-463-003 398 | CIRCLIP (INNER) | $4.02 | 398 | 5601 | |
| 2 | 51490-MG2-872 AV_17 | SEAL SET, FR. FORK
 Also at CMS € 39 |
$36.86 | AV_17 | 32906 | |
| 1 | 53167-958-680 AV_31 | GUARD, HANDLE END | $5.70 | AV_31 | 33017 | |
| 1 | 61103-430-000 MD_108 | RUBBER, FR. FENDER SETTING | $9.58 | MD_108 | 23384 | |
| 1 | 61104-444-000 336 | COLR, FENDER SETTING | $6.72 | 336 | 6122 | |
| 1 | 61104-444-000 337 | COLR, FENDER SETTING | $6.72 | 337 | 6123 | |
| 2 | 61104-444-000 392 | COLR, FENDER SETTING | $6.72 | 392 | 6124 | |
| 1 | 61104-444-000 394 | COLR, FENDER SETTING | $6.72 | 394 | 6125 | |
| 9 | 84906-118-000 AV_18 | COLLAR | $2.69 | AV_18 | 33223 | |
| 5 | 90101-329-000 AV_34 | BOLT, KICK ARM | $5.98 | AV_34 | 33327 | |
| 1 | 90103-426-000 208 | BOLT, FLANGE (8X20) | $2.96 | 208 | 10819 | |
| 1 | 90126-961-006 JJ10 | BOLT (8X40) | $4.58 | JJ10 | 10845 | |
| 2 | 90145-KM3-751 AV_34 | BOLT, OIL (10X22) | $9.42 | AV_34 | 33392 | |
| 1 | 90180-MA3-006 MD-B7 | BOLT, FLANGE (8X49) | $4.75 | MD-B7 | 40172 | |
| 1 | 90235-KA4-000 MD-B7 | NUT (18MM) | $9.90 | MD-B7 | 40375 | |
| 2 | 90306-181-761 400 | NUT, FLANGE (12MM) | $5.57 | 400 | 6769 | |
| 8 | 90321-315-670 AV_32 | NUT, FIXING
 Also at CMS € 12.5 |
$11.81 | AV_32 | 33455 | |
| 4 | 90417-360-000 AV_77 | WASHER, DRUM STOPPER | $1.52 | AV_77 | 33481 | |
| 1 | 90441-706-000 cp-3 | WASHER (6MM) | $1.20 | cp-3 | 40352 | |
| 8 | 90443-107-000 AV_77 | NUT, CAP (8MM) | $4.78 | AV_77 | 33515 | |
| 9 | 90450-147-000 AV_77 | WASHER, THRUST (8MM) | $1.31 | AV_77 | 33523 | |
| 10 | 90455-ML7-000 AV_38 | WASHER B (22MM) | $4.85 | AV_38 | 33556 | |
| 14 | 90461-286-000 AV_77 | WASHER B (25MM) | $4.78 | AV_77 | 33586 | |
| 5 | 90461-286-000 591 | WASHER B (25MM) | $3.25 | 591 | 6886 | |
| 6 | 90462-323-000 591 | WASHER, LOCK (25MM) | $3.38 | 591 | 6890 | |
| 3 | 90462-323-000 AV_77 | WASHER, LOCK (25MM) | $4.78 | AV_77 | 33592 | |
| 2 | 90463-430-000 cp-3 | WASHER (25MM) | $5.33 | cp-3 | 40372 | |
| 2 | 90463-430-000 cp-3 | WASHER (25MM) | $5.33 | cp-3 | 40241 | |
| 2 | 90463-430-000 cp-3 | WASHER (25MM) | $5.33 | cp-3 | 40310 | |
| 19 | 90481-035-000 610 | WASHER (8MM) | $3.58 | 610 | 6897 | |
| 30 | 90501-310-000 608 | WASHER (7X12) | $1.55 | 608 | 6908 | |
| 2 | 90543-273-000 414 | GASKET, FR. | $7.18 | 414 | 6949 | |
| 1 | 90544-283-000 229 | WASHER (8MM) | $2.56 | 229 | 6950 | |
| 1 | 90544-283-000 229 | WASHER (8MM) | $2.56 | 229 | 6951 | |
| 2 | 90544-283-000 392 | WASHER (8MM) | $2.56 | 392 | 6952 | |
| 2 | 90544-283-000 393 | WASHER (8MM) | $2.56 | 393 | 6953 | |
| 2 | 90556-044-000 592 | WASHER, FR. | $3.60 | 592 | 6962 | |
| 11 | 90602-259-010 473 | CIRCLIP (25MM) | $6.00 | 473 | 6984 | |
| 2 | 91009-HC0-003 AV_16 | BEARING (63/28)
 Also at CMS € 55 |
$51.98 | AV_16 | 33714 | |
| 1 | 91201-430-003 cp-3 | O-RING (22X1.5) | $11.98 | cp-3 | 40253 | |
| 2 | 91201-965-000 AV_76 | OIL SEAL (12X22X5) | $3.95 | AV_76 | 33753 | |
| 1 | 91202-430-003 DP-4 | OIL SEAL (28X50X8)
 Also at CMS € 13 |
$12.29 | DP-4 | 10951 | |
| 1 | 91202-444-023 396 | OIL SEAL (14X24X6) | $3.85 | 396 | 7178 | |
| 7 | 91202-KA3-711 cp-3 | OIL SEAL (10X17X4) | $4.27 | cp-3 | 40380 | |
| 2 | 91252-HA2-003 AV_77 | DUST SEAL (52X62X7)
 Also at CMS € 11 |
$10.40 | AV_77 | 33845 | |
| 1 | 91254-MG2-871 213 | DUST SEAL
 Also at CMS € 21.5 |
$20.32 | 213 | 10971 | |
| 2 | 91301-PC9-003 AV_11 | O-RING (7.7X2.3) | $2.27 | AV_11 | 33908 | |
| 1 | 92900-08022-0B AV_76 | BOLT, STUD (8X22) | $1.14 | AV_76 | 34004 | |
| 1 | 92900-08022-0B 312 | BOLT, STUD (8X22) | $1.24 | 312 | 7547 | |
| 29 | 93500-04025-0A AV_76 | SCREW, PAN (4X25) | $3.58 | AV_76 | 34008 | |
| 1 | 93500-05018-0G cp-3 | SCREW, PAN (5X18) | $9.58 | cp-3 | 40136 | |
| 20 | 93600-04012-0G HO1 | SCREW, FLAT (4X12) | $0.56 | HO1 | 11028 | |
| 1 | 93892-05020-07 310 | SCREW-WASHER (5X20) | $0.72 | 310 | 7554 | |
| 8 | 94002-06000-0S AV_76 | NUT, HEX. (6MM) | $4.78 | AV_76 | 34026 | |
| 6 | 94050-10000 325 | NUT, FLANGE (10MM) | $3.58 | 325 | 15172 | |
| 7 | 94050-10000 267 | NUT, FLANGE (10MM) | $3.58 | 267 | 15542 | |
| 7 | 94103-04800 AV_76 | WASHER, PLAIN (4MM) | $0.56 | AV_76 | 34045 | |
| 6 | 94301-08140 471 | PIN, DOWEL (8X14) | $1.34 | 471 | 7583 | |
| 1 | 94301-10160 422 | PIN, DOWEL (10X16) | $1.57 | 422 | 7588 | |
| 5 | 94305-20141 AV_12 | PIN, SPRING (2X14) | $0.83 | AV_12 | 34072 | |
| 8 | 94510-14000 AV_12 | CIRCLIP (14MM) | $3.58 | AV_12 | 34077 | |
| 1 | 95002-70000 305 | Clip, Tube (C11) | $3.58 | 305 | 7645 | |
| 10 | 96001-06012-00 47 | BOLT, FLANGE (6X12) | $2.38 | 47 | 40165 | |
| 8 | 96001-06016-00 AV_12 | BOLT, FLANGE (6X16) | $0.74 | AV_12 | 34161 | |
| 5 | 96001-06020-00 AV_12 | BOLT, FLANGE (6X20) | $1.00 | AV_12 | 34162 | |
| 4 | 96001-06028-00 HO1 | BOLT, FLANGE (6X28) | $1.26 | HO1 | 11072 | |
| 7 | 96001-06040-00 HO1 | BOLT, FLANGE (6X40) | $1.22 | HO1 | 11074 | |
| 2 | 96201-10000 AV_75 | NIPPLE (A.T6) | $1.72 | AV_75 | 34203 | |
| 26 | 96211-08000 492 | BALL (#8) (1/4) | $0.96 | 492 | 7725 | |
| 5 | 96211-09000 AV_75 | BALL (#9) (9/32) | $3.58 | AV_75 | 34208 | |
| 1 | 96300-08028-00 62 | BOLT, FLANGE (8X28) | $2.38 | 62 | 40169 | |
| 1 | 96400-08028-00 62 | BOLT, FLANGE (8X28) | $2.38 | 62 | 40163 | |
| 3 | 99101-357-1380 654 | JET, MAIN (#138) | $8.05 | 654 | 7914 | |
| 5 | 99101-357-1450 576 | JET, MAIN (#145) | $8.05 | 576 | 7916 | |
| 1 | 99113-GHB-1550 70 | JET, MAIN (#155) | $11.71 | 70 | 40337 | |
| End of parts for the Honda ATC250R '85 ATC250R 1985. | ||||||
