Honda ATC250R '83 ATC250R 1983 Parts IN STOCK!
The inventory is reasonably accurate. If you order an item that is missing, I will refund your money through PayPal. If the item looks less than perfect I will send a photo for your approval. If you have questions email me at steve@hondarestoration.com
I will charge actual shipping rates with a minimum shipping and handling fee of $4.95 and will refund any overpayment or ask for additional payment if you are overseas etc.
Have fun!
Look up your Honda part numbers here!
Parts Diagrams from CMS
Click Herefrom CMS in Holland for Honda ATC250
Parts in stock for Honda ATC250R '83 ATC250R 1983
| Qty | Honda Part Number | Description | Price | Loc. | ID | PayPal |
| 4 | 12298-961-000 KS | RUBBER, INSERT | $2.86 | KS | 50206 |  |
| 1 | 13105-961-003 DP-1 | PISTON (1.00)
 Also at CMS € 89 |
$84.11 | DP-1 | 9153 | |
| 1 | 13111-KZ3-000 KSB-1 | PIN, PISTON
 Also at CMS € 20.5 |
$19.37 | KSB-1 | 50071 | |
| 2 | 131B2-961-003 LEJ3 | RING SET (OS 0.25)
 Also at CMS € 61 |
$57.64 | LEJ3 | 9163 | |

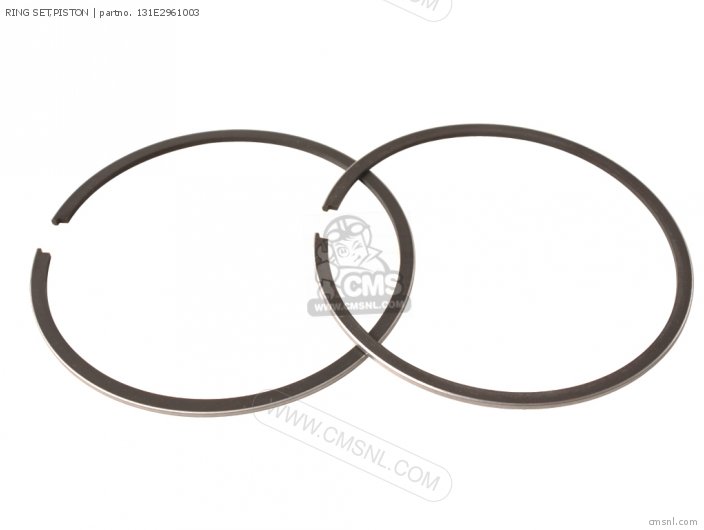

| 1 | 131E2-961-003 cp-4 | RING SET (1.00)
 Also at CMS € 43 |
$40.64 | cp-4 | 40441 | |
| 1 | 14132-KAE-000 AV_13 | GASKET A, REED VALVE | $3.55 | AV_13 | 30284 | |
| 1 | 16148-KB1-921 K6 | CAP, CABLE SEALING | $12.98 | K6 | 51205 | |
| 3 | 17256-425-010 AV_16 | BAND, A/CLNR TUBE | $8.51 | AV_16 | 30897 | |
| 1 | 17530-437-000 DP-3 | TUBE | $8.71 | DP-3 | 9392 | |
| 7 | 22201-430-000 T29 | DISK, CL FRICTION
 Also at CMS € 27.5 |
$25.99 | T29 | 2600 | |
| 1 | 22851-961-000 MD_49 | ROD, CLUTCH LIFTER | $21.69 | MD_49 | 21016 | |
| 1 | 23311-200-000 TL-5 | PLATE A, CLUTCH
 Also at CMS € 10.5 |
$11.90 | TL-5 | 9658 | |
| 6 | 23311-200-000 87 | PLATE A, CLUTCH
Also at CMS € 10.5 |
$11.90 | 87 | 2881 | |
| 6 | 23311-200-000 AV_35 | PLATE A, CLUTCH
Also at CMS € 10.5 |
$11.90 | AV_35 | 31347 | |
| 19 | 24329-360-000 MD_82 | SPRING, PAWL PLUNGER | $2.34 | MD_82 | 21564 | |
| 10 | 34901-950-003 222 | BULB (12V/60W)
 Also at CMS € 19 |
$17.96 | 222 | 4170 | |
| 1 | 34901-950-003 563 | BULB (12V/60W)
Also at CMS € 19 |
$17.96 | 563 | 4171 | |
| 1 | 43109-HC0-681 AV_30 | PISTON
 Also at CMS € 53.5 |
$50.56 | AV_30 | 32542 | |
| 7 | 43352-568-003 424 | SCREW, BLEEDER | $6.32 | 424 | 4940 | |
| 1 | 45108-166-006 AV_22 | SPRING, PAD | $7.31 | AV_22 | 32638 | |
| 1 | 45115-166-006 AV_22 | PIN, SLIDE
 Also at CMS € 10.5 |
$11.90 | AV_22 | 32645 | |
| 1 | 45115-166-006 618 | PIN, SLIDE
Also at CMS € 10.5 |
$11.90 | 618 | 5149 | |
| 1 | 45131-166-016 AV_20 | BOLT, PIN | $7.46 | AV_20 | 32653 | |
| 1 | 45134-GE3-601 277 | DUST PLUG | $4.37 | 277 | 15232 | |
| 2 | 46184-611-000 AV_20 | DUST SEAL | $8.14 | AV_20 | 32711 | |
| 2 | 50352-434-000 MD_161 | RUBBER A, STOPPER | $8.38 | MD_161 | 22816 | |
| 2 | 50354-428-000 113 | RUBBER B, STOPPER | $2.51 | 113 | 40011 | |
| 2 | 50354-428-000 416 | RUBBER B, STOPPER | $2.51 | 416 | 5392 | |
| 1 | 50642-964-010 AV_36 | PLATE, L. FOOTPEG
 Also at CMS € 36 |
$34.02 | AV_36 | 32836 | |
| 1 | 51447-469-003 AV_37 | CIRCLIP (51.5MM) | $3.71 | AV_37 | 32895 | |
| 4 | 52144-KA4-701 738 | CAP, DUST SEAL
 Also at CMS € 13.5 |
$12.76 | 738 | 5719 | |
| 1 | 53167-958-680 AV_31 | GUARD, HANDLE END | $5.70 | AV_31 | 33017 | |
| 1 | 61103-430-000 MD_108 | RUBBER, FR. FENDER SETTING | $9.58 | MD_108 | 23384 | |
| 1 | 61104-444-000 336 | COLR, FENDER SETTING | $6.72 | 336 | 6122 | |
| 1 | 61104-444-000 337 | COLR, FENDER SETTING | $6.72 | 337 | 6123 | |
| 2 | 61104-444-000 392 | COLR, FENDER SETTING | $6.72 | 392 | 6124 | |
| 1 | 61104-444-000 394 | COLR, FENDER SETTING | $6.72 | 394 | 6125 | |
| 9 | 61303-105-000 AV_18 | NUT, HEADLIGHT CASE | $10.89 | AV_18 | 33115 | |
| 9 | 84906-118-000 AV_18 | COLLAR | $2.69 | AV_18 | 33223 | |
| 13 | 90036-357-000 AV_31 | PIN, DOWEL (12X16) | $3.38 | AV_31 | 33296 | |
| 5 | 90101-329-000 AV_34 | BOLT, KICK ARM | $5.98 | AV_34 | 33327 | |
| 1 | 90126-961-006 JJ10 | BOLT (8X40) | $4.58 | JJ10 | 10845 | |
| 2 | 90306-181-761 400 | NUT, FLANGE (12MM) | $5.57 | 400 | 6769 | |
| 1 | 90306-329-770 cp-3 | NUT, RR. WHEEL AXLE | $10.78 | cp-3 | 40261 | |
| 8 | 90321-315-670 AV_32 | NUT, FIXING
 Also at CMS € 12.5 |
$11.81 | AV_32 | 33455 | |
| 4 | 90417-360-000 AV_77 | WASHER, DRUM STOPPER | $1.52 | AV_77 | 33481 | |
| 1 | 90443-430-000 AV_77 | WASHER (20X31.5) | $4.98 | AV_77 | 33517 | |
| 1 | 90446-430-000 AV_77 | WASHER (25.2X34) | $3.92 | AV_77 | 33521 | |
| 9 | 90450-147-000 AV_77 | WASHER, THRUST (8MM) | $1.31 | AV_77 | 33523 | |
| 1 | 90451-115-000 AV_38 | WASHER (14.2MM) | $1.66 | AV_38 | 33529 | |
| 1 | 90451-115-000 LEJ3 | WASHER (14.2MM) | $1.66 | LEJ3 | 10883 | |
| 10 | 90455-ML7-000 AV_38 | WASHER B (22MM) | $4.85 | AV_38 | 33556 | |
| 2 | 90463-430-000 cp-3 | WASHER (25MM) | $5.33 | cp-3 | 40310 | |
| 2 | 90463-430-000 cp-3 | WASHER (25MM) | $5.33 | cp-3 | 40372 | |
| 2 | 90463-430-000 cp-3 | WASHER (25MM) | $5.33 | cp-3 | 40241 | |
| 30 | 90501-310-000 608 | WASHER (7X12) | $1.55 | 608 | 6908 | |
| 12 | 90503-283-000 592 | WASHER | $4.37 | 592 | 6914 | |
| 2 | 90543-273-000 414 | GASKET, FR. | $7.18 | 414 | 6949 | |
| 1 | 90544-283-000 229 | WASHER (8MM) | $2.56 | 229 | 6950 | |
| 1 | 90544-283-000 229 | WASHER (8MM) | $2.56 | 229 | 6951 | |
| 2 | 90544-283-000 392 | WASHER (8MM) | $2.56 | 392 | 6952 | |
| 2 | 90544-283-000 393 | WASHER (8MM) | $2.56 | 393 | 6953 | |
| 2 | 90556-044-000 592 | WASHER, FR. | $3.60 | 592 | 6962 | |
| 11 | 90602-259-010 473 | CIRCLIP (25MM) | $6.00 | 473 | 6984 | |
| 2 | 91009-HC0-003 AV_16 | BEARING (63/28)
 Also at CMS € 55 |
$51.98 | AV_16 | 33714 | |
| 1 | 91011-VM0-008 MD-B8 | BEARING 1
 Also at CMS € 25 |
$23.63 | MD-B8 | 51335 | |
| 1 | 91201-430-003 cp-3 | O-RING (22X1.5) | $11.98 | cp-3 | 40253 | |

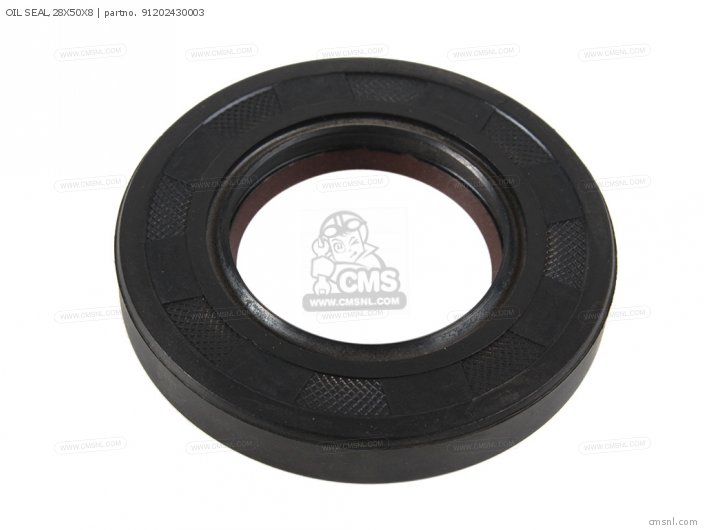

| 1 | 91202-430-003 DP-4 | OIL SEAL (28X50X8)
 Also at CMS € 13 |
$12.29 | DP-4 | 10951 | |
| 12 | 91204-286-003 AV_77 | OIL SEAL (18X29X7) | $3.95 | AV_77 | 34448 | |
| 17 | 91204-286-003 404 | OIL SEAL (18X29X7) | $3.95 | 404 | 7219 | |
| 1 | 91206-286-013 394 | OIL SEAL (14X28X7) | $3.10 | 394 | 7258 | |
| 4 | 91206-286-013 466 | OIL SEAL (14X28X7) | $3.10 | 466 | 7259 | |
| 7 | 91251-964-000 AV_77 | DUST SEAL | $5.47 | AV_77 | 33833 | |
| 6 | 91253-KA4-701 AV_50 | DUST SEAL
 Also at CMS € 12.5 |
$11.81 | AV_50 | 33854 | |
| 2 | 91254-434-003 369 | DUST SEAL (35MM)
 Also at CMS € 12 |
$11.34 | 369 | 7342 | |
| 4 | 91307-425-003 AV_50 | O-RING (21.5X3.2) | $1.82 | AV_50 | 33954 | |
| 5 | 91316-PY4-003 AV_75 | O-RING (32.5X1.8) | $2.58 | AV_75 | 33977 | |
| 5 | 91318-ME5-003 cp-3 | O-RING (5.6X1.9) | $3.36 | cp-3 | 40231 | |
| 1 | 91318-ME5-003 332 | O-RING (5.6X1.9) | $3.36 | 332 | 15358 | |
| 1 | 92900-08022-0B AV_76 | BOLT, STUD (8X22) | $1.14 | AV_76 | 34004 | |
| 1 | 92900-08022-0B 312 | BOLT, STUD (8X22) | $1.24 | 312 | 7547 | |
| 4 | 93891-05016-07 cp-3 | SCREW-WASHER (5X16) | $0.74 | cp-3 | 40390 | |
| 1 | 93892-05020-07 310 | SCREW-WASHER (5X20) | $0.72 | 310 | 7554 | |
| 1 | 94002-10000-0S 26 | NUT, HEX. (10MM) | $3.58 | 26 | 40235 | |
| 6 | 94050-10000 325 | NUT, FLANGE (10MM) | $3.58 | 325 | 15172 | |
| 7 | 94050-10000 267 | NUT, FLANGE (10MM) | $3.58 | 267 | 15542 | |
| 2 | 94301-10140 253 | PIN A, DOWEL (10X14) | $1.42 | 253 | 7584 | |
| 4 | 94301-10140 67 | PIN A, DOWEL (10X14) | $1.42 | 67 | 7586 | |
| 3 | 94301-10140 71 | PIN A, DOWEL (10X14) | $1.42 | 71 | 7587 | |
| 1 | 94301-10160 422 | PIN, DOWEL (10X16) | $1.57 | 422 | 7588 | |
| 8 | 94510-14000 AV_12 | CIRCLIP (14MM) | $3.58 | AV_12 | 34077 | |
| 1 | 95002-35000 321 | CLIP, TUBE (C6.5) | $2.38 | 321 | 15361 | |
| 4 | 95002-35000 49 | CLIP, TUBE (C6.5) | $2.38 | 49 | 40223 | |
| 1 | 95701-06016-07 AV_12 | BOLT, FLANGE (6X16) | $2.27 | AV_12 | 34146 | |
| 1 | 95701-08016-00 AV_12 | BOLT, FLANGE (8X16) | $1.02 | AV_12 | 34153 | |
| 1 | 95701-08025-00 HO1 | BOLT, FLANGE (8X25) | $1.20 | HO1 | 11070 | |
| 5 | 96001-06020-00 AV_12 | BOLT, FLANGE (6X20) | $1.00 | AV_12 | 34162 | |
| 4 | 96001-06028-00 HO1 | BOLT, FLANGE (6X28) | $1.26 | HO1 | 11072 | |
| 7 | 96001-06035-00 HO1 | BOLT, FLANGE (6X35) | $3.58 | HO1 | 11073 | |
| 1 | 96100-62040-00 AV_16 | BEARING (6204) | $24.89 | AV_16 | 34175 | |
| 2 | 96201-10000 AV_75 | NIPPLE (A.T6) | $1.72 | AV_75 | 34203 | |
| 1 | 96201-60000 AV_75 | NIPPLE (B.T6) | $2.27 | AV_75 | 34205 | |
| 26 | 96211-08000 492 | BALL (#8) (1/4) | $0.96 | 492 | 7725 | |
| 5 | 96211-09000 AV_75 | BALL (#9) (9/32) | $3.58 | AV_75 | 34208 | |
| End of parts for the Honda ATC250R '83 ATC250R 1983. | ||||||
